Universal Door
Phone -
Viking Weather Resistant Door - Answer your Door from
any Phone or Extensions in your Home or Office,

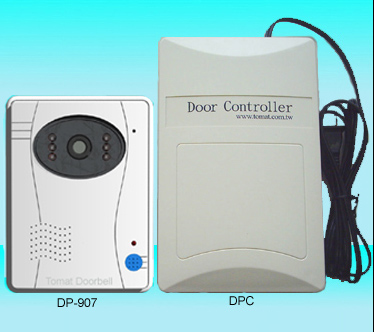

The DP-907 is a surface mount unit in a
durable plastic case.
Feature
Specifications:
●
DPC-907 device can make normal home phone、cordless phone、key
phone or PABX extensions
become a door interphone, this say while a
visitor press doorbell phone , the phone/extensions will ring , any
phone/extensions pick up handset will be available for a conversation ,
and then input 7 will open the door which build in ELECTRO-MAGNETIC
LOCKS (MAGLOCKS) or
ELECTRIC BOLTS or
ELECTRIC STRIKES
or AUTOMATIC DOOR… etc.
●
Doorbell phone can install a camera (optional device) to watch doorway
surrounding.
●
Hand-free communication and No need of battery.
●
Night light indication.
● Door phone sound Stentorian and clear, 20 seconds for a ringing cycle
for nobody answering the door
phone.
● Door Phone Controller without Coline：jumper JP1 ON (default setting), please refer to diagram
A,in
this
operation mode, someone unnecessarily
press doorbell phone, pick up handset will be available for a
conversation, input 7 for open the
door.
● Door Phone Controller with Coline：jumper JP1 OFF, please refer to diagram A, in this
operation mode,
someone necessarily press doorbell
phone, pick up handset will be available for a conversation, input 7
for open the door.
● If door phone controller is used for control ELECTRO-MAGNETIC LOCKS (MAGLOCKS)
or
ELECTRIC
BOLTS or
ELECTRIC STRIKES
or AUTOMATIC DOOR, please jumper OFF JP2, JP3, JP4 and jump
ON JP5, if be used for control
electrically controlled lock, please jumper ON JP2, JP3, JP4 and jumper
OFF JP5(default setting), please refer to
diagram A.
● Layout : door phone point 1 connect to door phone controller point T
,door phone point 2 connect to
door phone controller point R, please
refer to diagram .
● Layout : if unit chooses to be used for control electrically controlled
lock, door phone point 3 and 4 will
be connected to electrically
controlled lock.
● Layout : door phone controller PHONE both points connect to telephone or
telephone exchange system
coline port.
● Layout : door phone controller LINE both points meet to local telcom.
● Layout : door phone controller NO both points connect to
ELECTRO-MAGNETIC LOCKS (MAGLOCKS) or
ELECTRIC BOLTS or
ELECTRIC STRIKES
or AUTOMATIC DOOR , NC both points will meet to
another lock.
|
