Door Phone System DP-909

Feature Specifications:

This system include two units which doorphone speakers (example:DP-912) and controller device (Dpc) , it can make normal home phone cordless phone key phone or PBX extensions become a door interphone , this say while a visitor press doorbell phone , the phone or PABX extensions will ring , any phone or extensions pick up handset will be available for a conversation , and then input # will open the door which build in ELECTRO-MAGNETIC LOCKS (MAGLOCKS) or ELECTRICBOLTS orELECTRICSTRIKES
or SHUTTER DOOR… etc.

Doorbell phone can install a always on camera (optional device) to watch doorway surrounding from TV and recording the image by DVR.

Weather Resistant.

Hand-free communication and No need of battery.

SpeakerPhone loud and clear.

Night light indication.

Application: outside doorphone,old person emergency call,monitor environment,bathroom phone,hotel phone,public service phone.
　

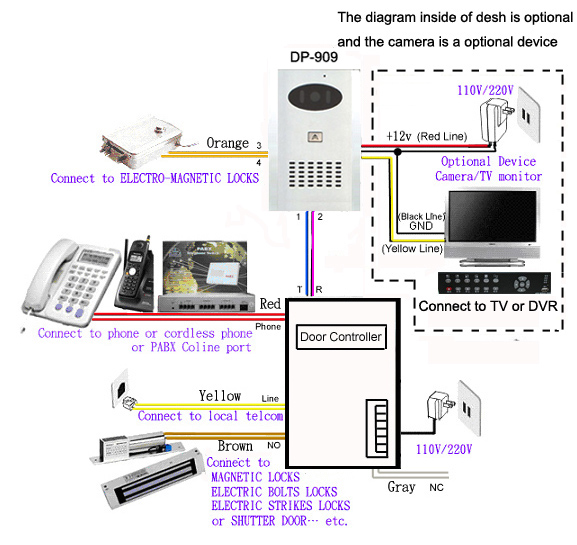

Dpc(door phone controller) with doorphone speakers installation :

Layout1: DPC blue line connect to doorphone speakers No.1 location , DPC purple line connect to doorphone speakers No.2 location,
Layout2 : DPC two red lines (phone port) connect to telephone or telephone exchange system CO line port.
Layout3 (optional connection):DPC two yellow lines (CO line port) connect to local CO Line.
Layout4 (optional connection): if DPC chooses to be used for control electrically controlled lock, door phone speakers No.3 and No.4 locations connect to electrically controlled lock AC point and EL point.
Layout5 (optional connection): DPC two brown lines (normally open) both points connect to push button which to open ELECTRO-MAGNETIC LOCKS (MAGLOCKS) or ELECTRIC BOLTS or ELECTRIC STRIKES or SHUTTER DOOR, two gray lines (normally closed) both points will meet to another lock.
Layout 6 (optional connection): If the door phone speakers has install surveillance cameras, the red wire to the transformer +12 V, the yellow wire to the signal of the monitor or DVR input, while the black wire connected to the transformer ground and monitors Video ground.
