AH101 is design for the convenient usage of key telephone, specially for those who online all the time.

 Key Features

- Hands-free talk with speaker & microphone

- Headset volume adjust

- Microphone volume adjust

- Switch for various types of handset

- Switch for various types of phone

- Audio output jack for recording

　

Electrical Characteristics
Impedance：150 Ω ± 15%
Speaker：150Ω
Distortion：5% Max
Sound Pressure：89 ± 3dB
Microphone：36dB ± 3dB
Direction：Full
Sensitivity：-42 ± 5dB
Frequency：300 ~ 3KHz

　

Environment Requirement

Operation Temp：0℃ ~ 50℃

Storage Temp：-30℃ ~ 65℃(-22℉ ~ 149℉)

Operation Humidity：10% ~ 90% without congeal

Product Spec:

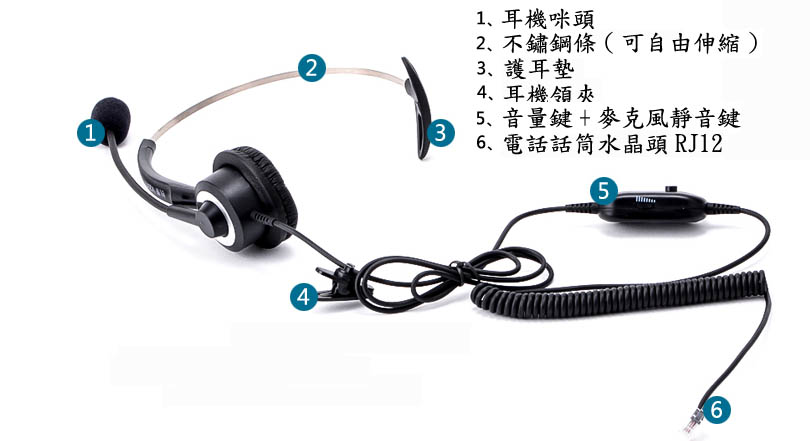

Headset for PBX and Key Telephones
Dimension: 95(L) x 65(W) x 23(H)mm
Weight: 150g
Cable: 150cm
