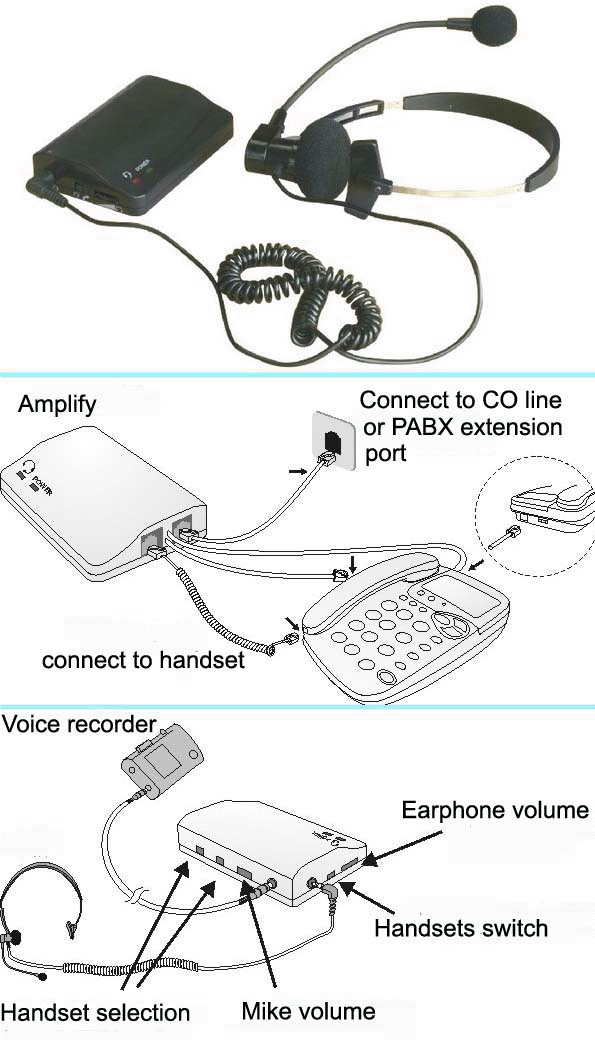

AH100 is design for the convenient usage of key telephone, specially for those who online all the time.The amplifier gets the power from the telephone line cable, not need to load any battery or plug external power supply. User can easily adjust the volume of headphone and microphone for best performance.


  Model：AH-100

 Key Features

- Hands-free talk with speaker & microphone

- Line powered

- Headset volume adjust

- Microphone volume adjust

- Switch for various types of handset

- Switch for various types of phone

- In use indicator

- Switch for handset and headset

- Audio output jack for recording

Electrical Characteristics
Current：Idle < 0.1mA / In use < 50mA
Impedance：4 Ω ± 15%
Speaker：32Ω 0.5W
Output：1W
Distortion：5% Max
Sound Pressure：89 ± 3dB
Microphone：62 ~ 65dB
Direction：Full
Sensitivity：-42 ± 5dB
Frequency：20 ~ 5KHz

Environment Requirement

Operation Temp：0℃ ~ 50℃

Storage Temp：-30℃ ~ 65℃(-22℉ ~ 149℉)

Operation Humidity：10% ~ 90% without congeal

Product Spec:
Headset with Amplifier for PBX and Key Telephones
Model: AH100
Dimension: 95(L) x 65(W) x 23(H)mm
Weight: 150g
Cable: 180cm
