Tomat corp. PABX

ISO9001 Quality Certified manufacturer&CE approved TC-2000AC Series 　key Specifications: 1. Caller ID transferred 2. Auto detect Fax Sgnal 3. Outward code dialing ( least cost route, can save call fee) 4. Auto add IP code when dial long-distance call 5. Outside ( CO ) Line Duration Time Limit 6. Station lock ( personal password, allows lock your extension) 7. Busy transferred 8. Unconditional Transferred 9. Call Transferred to Secretary 10. Do Not Disturb(DND) 11. Day and Night service 12. Twin routes 3pcs OGM for DISA, total 30 seconds. 13. Party Conference ( between 2 extensions and 1 CO line ) 14. Party Conference ( among 3 extensions) 15. Executive busy override 16. Monitor voice record 17. Enable/ disable outside caller reaches extension by one touch dialing 18. Hot line ( Call to operator as soon as lifts handset without any number input ) 19. One touch dialing, allows call to operator by one key 20. Outside line ring by turns( allows assign extension ring by turns when has outside call) 21. Allows has maximum of eight extension ringing at the same time 22. Extension outgoing call class 23. Extension free notice 24. Extension number assignable freewill ( 2, 3 or 4 digits) 25. Self-Extension Number Confirmation 26. Various Outside ( CO ) Line Access Mode Selection 27. Make outside call by code ( speed dialing, increase your work efficiency) 28. Remote program, more convenient and easy after service. 29. External music input as holding music 30. Broadcast 31. Pulse and Tone mode setting 32. Polarity Reverse Detection 33. PC Billing function, also can program function by PC, etc. 　　Packing: 12pcs/Carton N/W:21kg/carton G/W:22kg/carton Carton size(mm):425×425×60 Warrranty:One year Supply 2% spare part with the shipment Welcome for ODM , OEM.

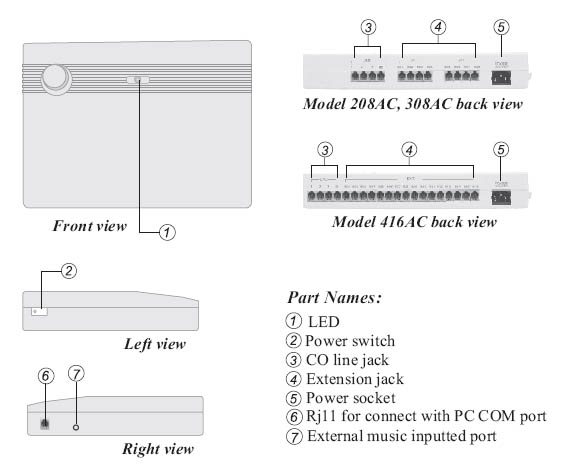

	Install layout guide
	Download user manual

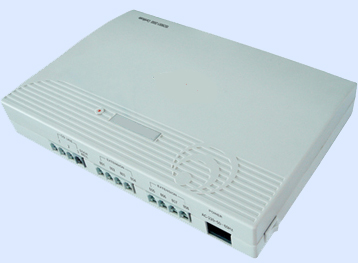

	TC2000AC ALL OF MODEL

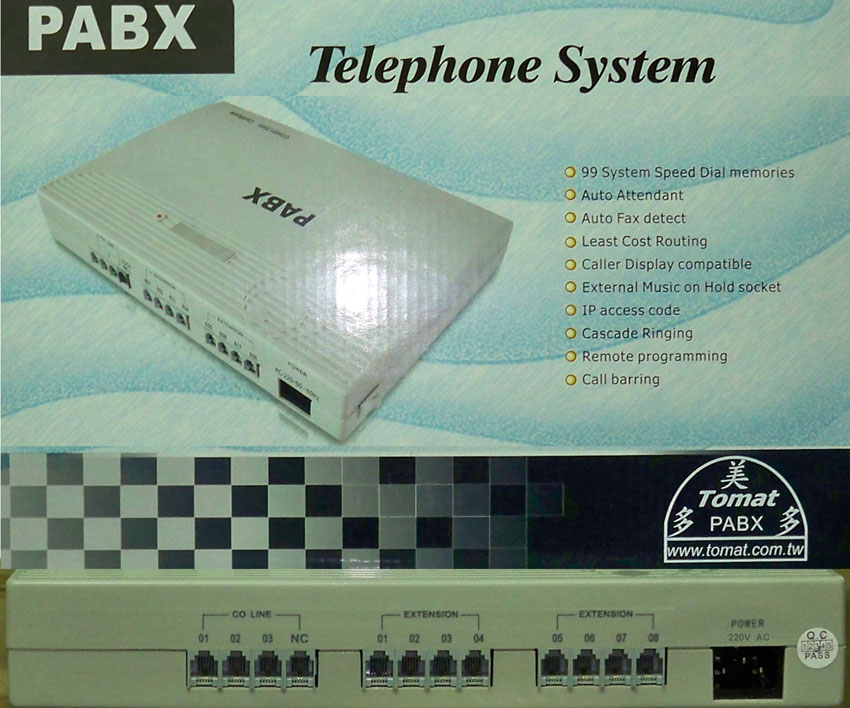

	TC-308AC 3 CO line 8 Extensions
	TC-312AC 3 CO line 12 Extensions
	TC-316AC 3 CO line 16 Extensions
	TC-408AC 4 CO line 8 Extensions
	TC-416AC 4 CO line 16 Extensions
	TC-424AC 4 CO line 24 Extensions
	TC-432AC 4 CO line 32 Extensions
	TC-624AC 6 CO line 24 Extensions
	TC-632AC 6 CO line 32 Extensions
